NC800 SL
Hypex nc500 Based Amplifier
Hypex Nc500 based amplifier – Powerful and precise
Thrilling sound experience with our custom input buffer boards
The Hypex NC500 based amplifier has the option to use a custom input buffer board with class A op amps that makes the Hypex NC500 work to its fullest potential and create a mind-blowing musical experience. With our NC800SL Amplifier you have the option to choose our custom Apollon input buffer board built around Sonic Imagery 994, Sonic Imagery 990 PRO OP Amps or Sparkos Labs SS2590 PRO op amps and Sparkos Labs regulators. The Apollon input buffer board is using highest quality 1% metal film resistors and audiophile grade polystyrene capacitors, while the power is being conditioned with discrete voltage regulators made by Sparkos Labs.
very big soundstage and defined 3D sound

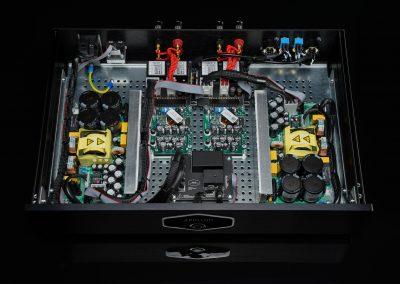

The amplifier is handbuilt with highest precision using only highest quality components. To connect your speakers we use custom built Apollon Pure OFC Copper Binding Posts that are internally connected to the amplifier with Pure OCC 12AWG Copper Output Wire. The input connectors are Neutriks high quality gold plated XLR sockets. The amplifier has a soft start function and it is turned on with an illuminated switch on the front panel. The amplifier also has a standy mode, to turn it off completly a high quality mains switch on the backpanel is used.
APOLLON AUDIO INPUT BUFFER – SONIC IMAGERY 994ENH TICHA DUAL DISCRETE OP AMP
Apollon Audio PRO Input Buffer – Sonic Imagery 990ENH TICHA Discrete Op Amp
Sparkos Labs SS78 & SS79 Discrete Voltage Regulators
The Sparkos Labs SS78 and SS79 Discrete Voltage regulators bring many advantages compared with standard monolithic designs where large capacitors for heavy filtering on the internal voltage can not be implemented. The fully discrete erorr amplifier on the device gives the ability for amazingly high input rejection and unique compensation techniques that are not possible to implement with regular monolithic IC error amplifiers.
Power rating (per channel)
Watt @ 2 Ohm
Watt @ 4 Ohm
Watt @ 8 Ohm
Technical Specifications
Stereo True Dual Mono Design
Distortion: THD+N – 0.0008 % 20Hz
Frequency Response: 0 – 50k Hz +0/-3dB
High Input Impedance 94K
Signal to noise ratio: 135db
26.5 dB Gain
Ultra High Damping Factor
Power rating (channel): 550W @ 2ohm | 700W @ 4ohm | 400W @ 8ohm
Case Dimensions: 450 x 82 x 292 mm ( 104mm height with feet)
Weight: 7,7 kg
Components
Hypex SMPS1200A700 (2 pcs.)
Hypex Ncore NC500 amplifier (2 pcs.)
Apollon Audio Input Buffer Board (2 pcs.)
High quality low voltage PSU for standby control
Neutrik gold plated XLR line input sockets (2 pcs.)
Gold plated RCA input sockets with selector switch (2 pcs. optional)
Apollon Pure OFC binding posts
Neotech UP-OCC 12AWG Solid Copper Speaker output wire
12V Trigger with passthrough (optional)
High quality fused mains input socket with power ON/OFF button
Aluminium enclosure with anti-vibration aluminium feet
Enclosure description and options
The Apollon Audio NC800SL amplifier case with Hypex NC500 modules is very elegant and made of anodized aluminium. You have the option to choose a black or silver finish of the 10mm aluminium front plate aswell as black or silver finish of the aluminium feet. If you would like to have the option to mount the amplifier inside a rack there is also an option with 4mm rackmount faceplate in silver or black finish.
Silver 10mm aluminium faceplate
Black 10mm aluminium faceplate
4mm silver aluminium 2HE rackmount faceplate
4mm black aluminium 2HE rackmount faceplate
Extended 2 years Full Warranty
The Apollon Audio NC800SL amplifier comes with a 2 Years Full Warranty. We are using only highest quality components and materials to build the Apollon Audio NC800SL amplifier based on the Hypex NC500 modules. This selection by itself is a guarantee that the final product will stand the test of time and everyday use. Each NC800SL amplifier is handbuilt with highest precission and care so we proudly stand behind our product and offer you a Full 2 Years Warranty.
Choose a discrete Op Amp that best suits your listening preference
Sparkos Labs SS2590
PRO discrete Op Amp
Listening impression and sound characteristics
The SS2590 PRO discrete op amps will outperform virtually all audio grade monolithic IC op amps in open loop gain, noise performance, output current, and magnitude of class A bias current. With comparison to the 994ENH Ticha disrecete op amp they are more soft, richer sounding and warm. They are your perfect choice if you would like to just sit back, relax and enjoy the music as everything just sounds so pleasing with the Sparkos SS2590 Pro op amp. If your current sound system lacks a spark of liveliness the Sparkos SS2590 is and ideal choice to bring a bit of warmth into your system.
Sonic Imagery 994ENH-TICHA Dual Discrete Op Amp
Listening impression and sound characteristics
The Sonic Imagery 994Enh-Ticha is a dual high performance discrete operational amplifier designed for professional audio applications and areas where ultra-low noise, low distortion and highly linear uncoloured performance is required. It is a perfect choice if you have the professional need to analyse music or just like to explore the finer details. It will enable you to hear things like “oh the engineer eq’ed the piano too much or he over compressed the vocals” because they are very linear and analytical. It will make it possible to hear all the flaws in the mixes in a second.
“I had a pleasant surprise this evening. I had the visit of Johnny Cash and June Carter at my place and they performed an outstanding live performance. My all body was shaking and thrilled by the flow or their amazing voices and the rhythm of Johnny’s guitar.
This amazing experience was possible thanks to my customized NC800SL I just received this morning. It feels like a quality product. It looks and sounds great. And it should further improve after few more days of listening.
The Apollon Team did a great job. The custom 8 connectors are perfect to bi-wire my B&W CM10. I was looking for the best value for money amplifier based on the Hypex NCore.
I have to go. More guests are coming. The Folsom prison is inviting itself to my place. ”
“I’ve had the amp for about a week and a half now and I’m enjoying it quite a bit. It’s opening up nicely and the depth and detail are excellent. I’ve had to adjust my subs (dual Rythmik F15s) down a bit because, I believe, my Tylers are now being driven more to their potential. Excited to hear if things open up even more.
Very happy so far with my purchase. Thanks again!”
“The amp sounds amazing. Everything you said about the amp is true. Super accurate, super precise and fast. I rediscovered my NS10s.”
“I received the amplifiers, I thank you again for the quality of manufacture. I will do a very good publicity for Apollon Audio.”
What you get!
Neotech UP-OCC 12AWG Solid Copper Speaker output wire adds more space and airiness.
Apollon Pure OFC binding posts made of pure copper; accepts banana plugs, spades, bare wire
Only:
1.575,00€
14 Days Money Back Guarantee!
Enjoy your leisure time listening to your favorite recordings, giving you a magnificent feeling of joy, with the Apollon Audio NC800SL Hypex NC500 based amplifier being a major cause for the stunning performance of your loudspeakers.
And remember that you have 14 days to thoroughly test the NC800SL amplifier in your own home, with your own loudspeakers in a familiar enviroment and get to know it and hear its performance. If by any chance the amplifier does not live up to your expectations just send us an email and return the amplifier for a full refund.
Apollon Audio NC800SL
Only:
1.575,00€
