PNC 2k MONOBLOCKS
HYPEX NC2k BASED MONOBLOCK AMPLIFIER
POWERFUL AND PRECISE
SPACIOUS, AIRY SOUND, ABUNDANT IN VIVID DETAIL WITH OUR CUSTOM INPUT BUFFER BOARD WITH WEISS OP2-BP
The Apollon Audio PNC 2K Monoblocks are exceptionally fast, uncommonly clean, and exceedingly musical with articulated, deep, tight, and powerful bass. This is how the mono blocks can be described in one sentence and we have accomplished that with using a linear power supply to power the highly acclaimed Weiss OP2-BP Op Amp that is incorporated on our custom input buffer board.
Exceptional chassis design
The aluminium feet provide isolation and absorption from the ground plane.
The chassis is executed in a very tasteful piano black color (available in pearl white). It is spray painted rather than anodised since paint is a softer, more absorbent material.
A very special feature is the backlit glass plate with the engraved Apollon mark and the large heatsink that absorbs the heat from the NC2K module and helps with keeping the amplifier module running on normal operating temperature even under high loads.
Layout and design

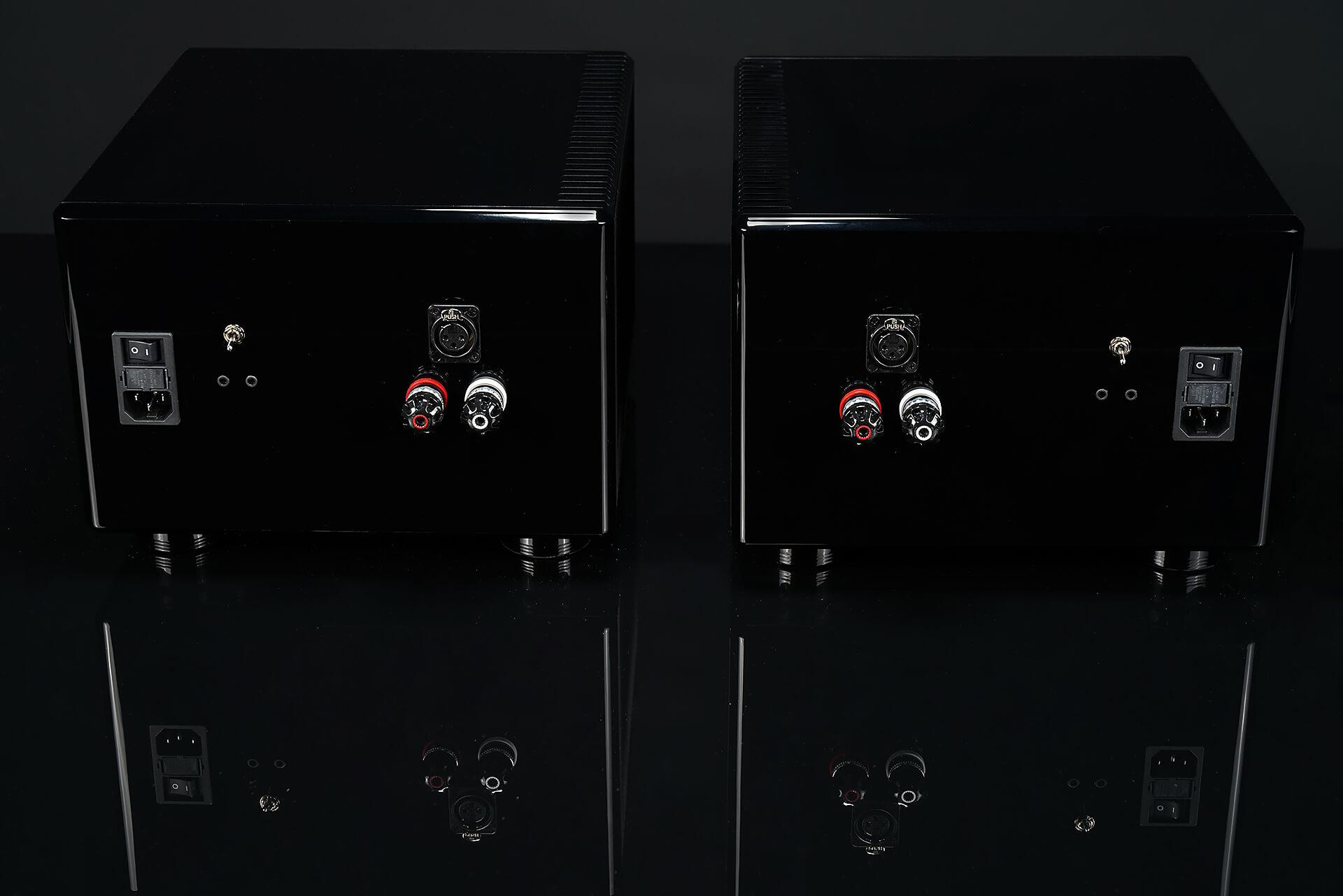

The monoblock amplifiers are handbuilt with highest precision using only highest quality components. To connect your speakers we use custom built Apollon Pure OFC Copper Binding Posts that are internally connected to the amplifier with Pure OCC 12AWG Copper Output Wire and soldered with silver solder. The input connectors are Neutrik high quality silver plated XLR sockets. The mono block amplifier has a soft start function and it is turned on with a hidden push button switch on the bottom lid.
The monoblock amplifier contains a Hypex NC2K module coupled with our Apollon Audio PNC custom input buffer board with the acclaimed Weiss OP2-BP Op Amp onboard. The PNC2K monoblock amplifier is powered with the SMPS Hypex power supply boasting 3800 Watts of power. The standby control module is powered with a low-voltage power supply unit.

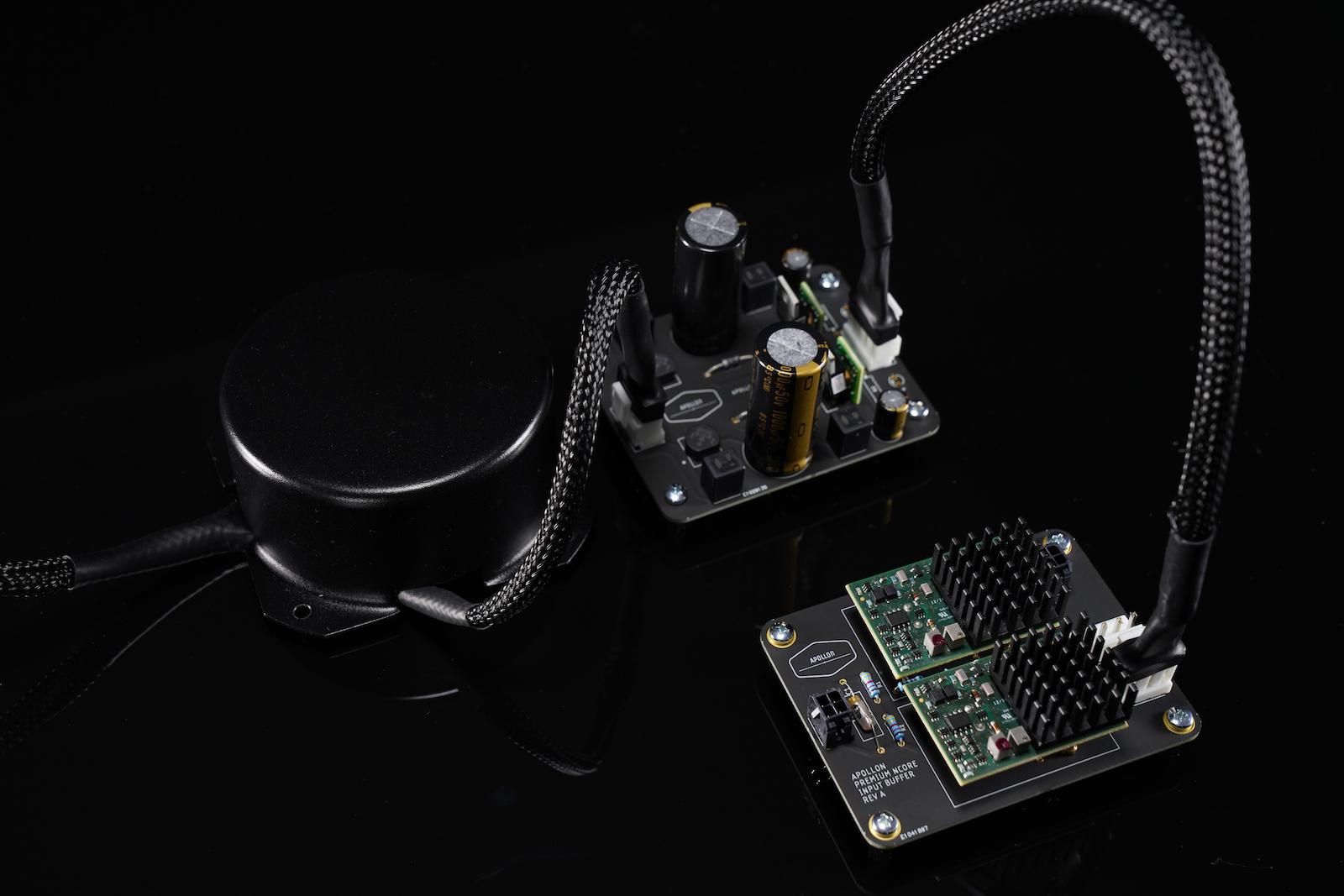

Providing low ripple and ultra low noise power to the Weiss OP2-BP Op Amps is possible with our custom designed linear power supply with large Nichicon capacitors and the Sparkos Labs Discrete Voltage Regulators that play a key role for ultra low noise and fast transient responses on our custom input buffer boards for the Hypex NC2K based amplifier. They are responsible for improved low level listening ability, far superior 3D soundstage and high frequency details. The difference is mostly noticeable at higher volumes, where the clarity remains on higher levels and with ample details and dynamics even at low listening levels.
Power rating
Watt @ 2 Ohm
Watt @ 4 Ohm
Watt @ 8 Ohm
Technical Specifications
True Mono Design
Frequency Response: 0 – 50k Hz +0/-3dB
Low Distortion: THD+N – – 0.0008 % 20Hz-20kHz
High Input Impedance 100K
Signal to noise ratio: 133dB
28 dB Gain
Ultra High Damping Factor
High Current Output Max 48A Capable of driving 2ohm (for the Most Demanding of Speakers)
Power rating: 2000W @ 2ohm | 2700W @ 4ohm | 1600W @ 8ohm
Case Dimensions: 350mm depth x 205mm height (with feet) x 280 mm width
Weight:Â 14 kg
Components
Hypex SMPS3KA700 (1 pcs.)
Hypex Ncore NC2k amplifier (1 pcs.)
Apollon Audio PNC Input Buffer Board (1 pcs.)
Weiss OP2-BP Op Amp (2 pcs.)
Linear Power supply with Sparkos regulators (1 pcs.)
Apollon Control Board for standby control
Neutrik silver plated XLR line input socket (1 pcs.)
Apollon Pure OFC binding posts
Neotech UP-OCCÂ 2x12AWG Solid Copper Speaker output wire
12V Trigger for wakeup from standby
High quality fused mains input socket with power ON/OFF button
Aluminium enclosure with anti-vibration aluminium feet
Extended 2 years Full Warranty
The Apollon Audio PNC2K monoblock amplifier comes with a 2 Years Full Warranty. We are using only highest quality components and materials to build our Apollon Audio PNC2K mono block amplifier based on the Hypex NC2K modules. This selection by itself is a guarantee that the final product will stand the test of time and everyday use. Each PNC2K amplifier is hand-built with highest precision and care so we proudly stand behind our product and offer you a Full 2 Years Warranty.
APOLLON AUDIO PNC2K
Neotech UP-OCC 2x 12AWG Solid Copper Speaker output wire
Apollon Pure OFC Â binding posts made of pure copper; accepts banana plugs, spades, bare wire
Starting from:
2.995,00€
